Iron Tag Rugged Ultra-High Temperature Data Logger

Introduction

The Rugged Ultra-High Temperature Data Logger is protected by an S316 stainless steel casing and is ideal for temperature monitoring and recording in harsh environments such as moisture, corrosion, and immersion. It can store up to 35,000 readings with an internal temperature sensor that can work at a temperature down to -90℃ or up to 150℃ with an accuracy of ±0.5℃. This device can also be configured via our free software before use, and connected to a PC via the USB port to automatically generate a report, no software is required.

Features

S316 stainless steel case and IP 68 protection class

With a S316 stainless steel case and the protection class of IP68, this data logger is safe and rugged enough for work in a harsher environment with higher moisture, corrosion and other protection requirements.

Multiple wide temperature ranges available

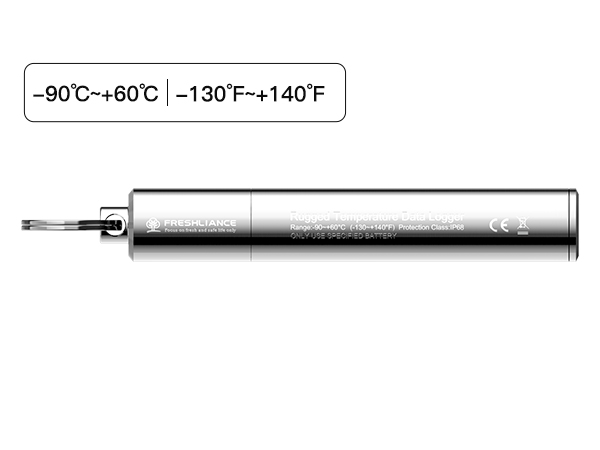

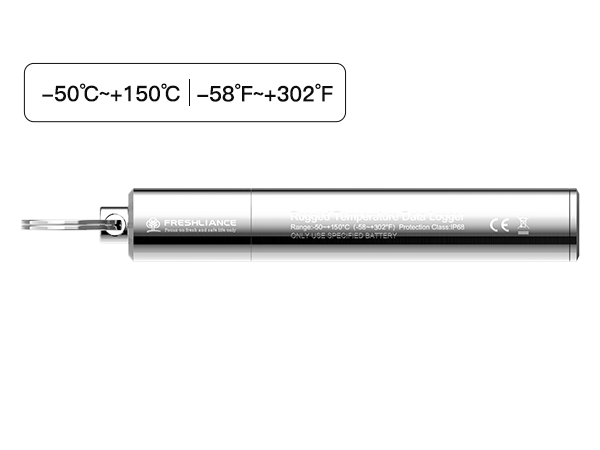

This data logger is available in three temperature ranges: -90℃～+60℃ / -40℃～+125℃ / -50℃～+150℃, to adapt to more application environments.

Configurable parameters

Start mode, start delay, logging interval, stop mode, alarm points and other parameters are configurable with our free software.

LED indicator light

The LED light will flash green or red to help users to learn about the device status, including start/stop, alarm, etc.

Temporary report

At recording status, the device can be connected to a PC via the USB port to generate a PDF report. In this process, the device will still monitor and record temperature data.

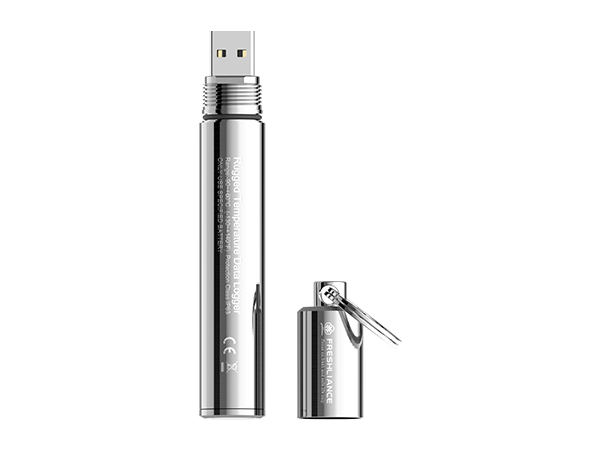

Replaceable battery

This data logger is designed for multi use. With a replaceable battery, it can better ensure the battery life and extend service time of the device.

Large memory capacity

Up to 35,000 readings for only PDF reports; Up to 20,000 readings for PDF&CSV reports.

CE, RoHS, GMP, EN12830

This device complies with a number of international certification standards, with high stability and reliability.

Specification

Applications

Temperature monitoring and recording are essential for temperature-sensitive products. However, some monitoring environments are so rugged and severe that data loggers made of ordinary materials are hard to endure. To adapt better to strenuous environments that may include moisture, corrosion submersion, etc., we provide you our Rugged Temperature Data Logger, housed in a S316 stainless steel case. With the high protection class of IP68, this device also features good waterproof and dustproof performance.

This device can be widely used in printing and dyeing, disinfection, essential oil refining, laboratory, scientific research, and other fields.
