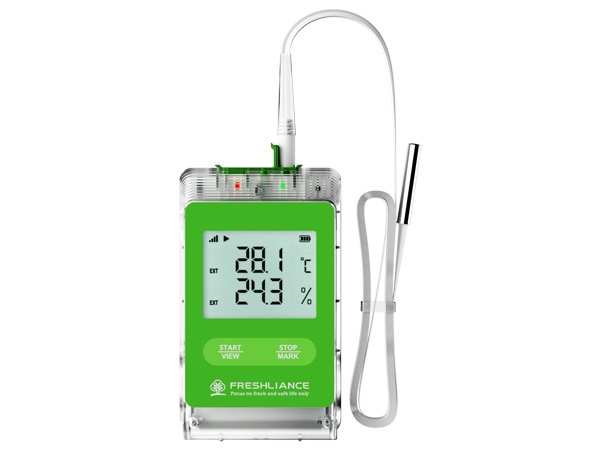

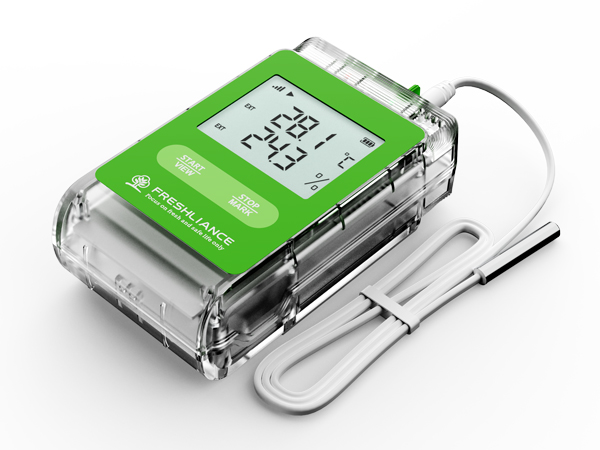

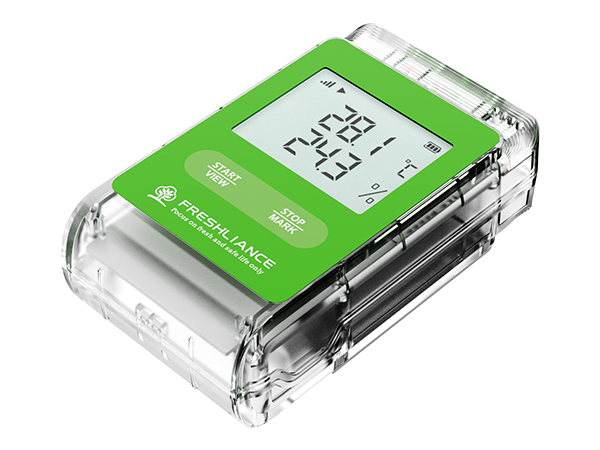

Freshliance Fresh Tracker 10 Real-time temperature data logger

Introduction

The Fresh Tracker is a 4G real-time data logger that can simultaneously monitor data such as temperature, humidity, geolocation, and illumination & shock. This wireless real-time data recorder not only records real-time and historical data throughout the entire logistics process but also uploads it to a cloud server via the network. All data can be accessed through a mobile app and cloud platform, facilitating user filtering, viewing, analysis, and export. This transportation real-time data logger is an ideal device for monitoring various data in cold chain logistics.

Features

1, Real-time monitoring and positioning
The real-time data tracker can monitor real-time temperature and humidity at any time. And with LBS base station positioning technology, both real-time and history geolocation data is provided on the E-map.

2, Data stored in the cloud, easy to manage and track
All data is stored on our cloud platform, easy to manage and track.

3, Persistent caching during offline mode, and data re-upload after network recovery
The wireless real-time data logger will not stop recording and storage during offline mode. The data that is not successfully uploaded during network failure can be automatically re-uploaded after network recovery.

4, Real-time alarm notification
An alarm will be notified via the LED indicator on the device and SMS/Email from the platform or APP.

5, Data filtration by date
With our free APP or web platform, the user can view the data of a certain period.

6, Parameters configurable
Start delay, logging interval, uploading interval, alarm settings, device calibration, and other parameters are all configurable as needed.

7, Temporary report available
During normal working status, a temporary report can be generated by connecting the logger to a computer or remotely generated through our free APP or web platform.

8, Data Privacy
Both the APP and web platform are password-protected.

Specification

Model	Fresh Tracker 10S	Fresh Tracker 10	Fresh Tracker-ETU
Type of Use	Single use	Multi use
Built-in Sensor	-30℃~+70℃, ±0.5℃ F.S.
	0~100%RH, ±3%RH
Illumination Sensor	Optional
Shock Sensor	Optional
External Probe	See the external probe list
Flight Mode	√
Positioning Technology	LBS positioning, WiFi and GPS positioning optional
Local Report	USB Type-C interface to download full trip report
Memory Capacity	Max. 30,000 readings each probe
Device Parameters	User configurable Default: Alarm point: 2-8℃; Logging interval: 10min; Uploading interval: 60min
Charging Port	Type-C DC5V/2A
Installation	3M adhesive tape, hanging
Dimensions	101mm*60mm*34mm
Weight	200g (Main device)
Temperature Units	℃/℉
Battery Life	Max. 120 days
Operation System	Web, APP
Cellular Network	4G (LTE_Cat1) with 2G (optional)
Battery	3.7V lithium battery (rechargeable), UN38.3 complied; Non-lithium battery optional

Externl Probe List:

Applications

Fresh Tracker is a real time temperature and humidity data logger with geolocation, and illumination & shock, based on IOT platform. It is suitable for the cold-chain logistics and storage of fruits and vegetables, drinks, fresh produce, dairy products, vaccines, etc.

The most important aspect of the cold chain is to control the temperature and humidity within a proper range, so as to maximize product performance and prolong product life cycle. With this IoT real-time data logger, the user can remotely get real time temperature and humidity data via our free APP and web platform and take specified corrective actions to minimize the loss.

And with LBS base station positioning and 4G(LTE_Cat1)/2G technology, the 4G real-time in-transit logger enables the user to easily get the real time geolocation of products and control the whole logistics route.
