BlueTag TH30B/TH30R Bluetooth Temperature Humidity Data Recorder

Introduction

BlueTag TH30B/TH30R is a Bluetooth temperature humidity recorder with LCD display, configurable parameters and rechargeable, based on Bluetooth wireless communication technology, which makes it more convenient for users to view both real-time and historical data on the APP, without unpacking the goods. With configurable parameters and optional internal and external probes, this Bluetooth temperature data logger can be used in a variety of fields, such as medicine, food, smart home.

Features

1, Paired by Bluetooth and review history by APP
When in range, users can easily pair this Bluetooth data logger with our Tkeeper APP via Bluetooth communication, and then use the APP to remotely program this data logger and view all recorded data, no need to open the container or vehicles, etc., so as to minimize the adverse effect on the cold chain monitoring.

2, Comprehensive data analysis, filtration and graphing
This APP features powerful data analysis, filtration and graphing functionality, with the automatically analyzed results of max., min., avg., and MKT value, etc., so as to help users to view all data more intuitively.

3, Data synchronization among multiple users
This collaborative APP supports multiple users to view online simultaneously. When one user uses the APP to view the recorded data of the data logger, all the data viewed will be automatically synchronized to other users.

4, Free data cloud storage for 2 years
All data can be stored at our cloud platform for 2 years at no cost.

5, Support Android and IOS
This APP is available in Android and iOS versions.

6, Up to three monitoring channels (External probes optional)

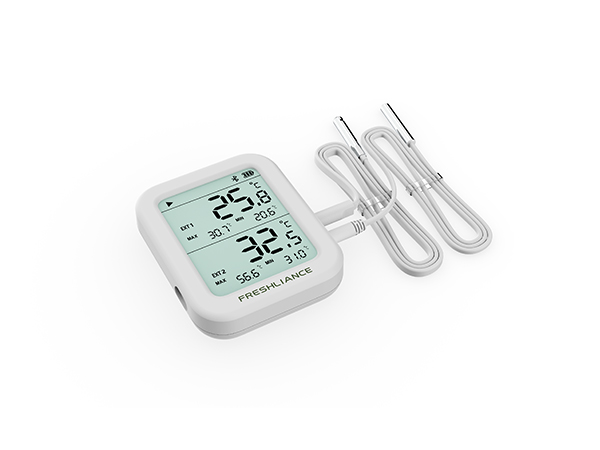

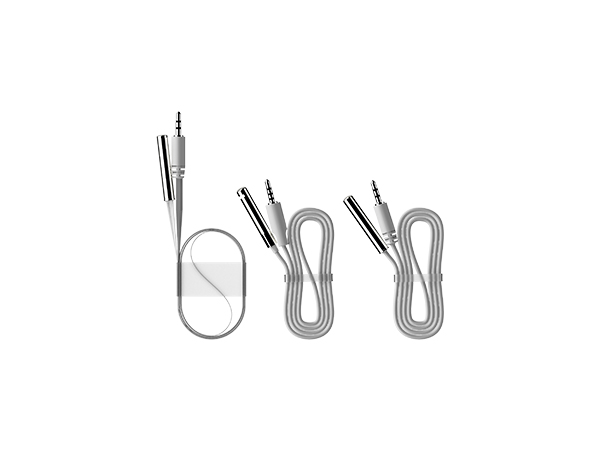

In addition to the built-in sensor, this Bluetooth data logger can also be optionally equipped with one or two external probes for temperature and humidity monitoring. And the data recorded by each sensor/probe will be separately recorded, viewed and exported.

7, Flat ribbon cable optional
This flat ribbon cable, 0.3mm thick and 7.5mm wide, is ultra thin and slim, convenient for wiring and space saving. This cable is designed to be 2m long and other lengths are customizable. Besides, this cable features high temperature resistance, fast data transmission, and high softness and foldability.

9, LCD screen

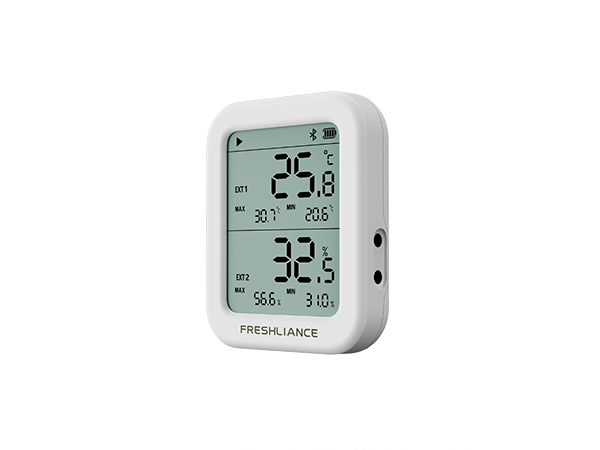

An LCD screen is available to display real time reading, max. and min. values, battery level, Bluetooth connection status, etc.

Specification

Applications

BlueTag TH30B/TH30R Bluetooth temperature and humidity data logger is easy to use and can monitor and record environmental temperature and humidity around the clock. With Bluetooth communication technology, the user can remotely view and analyze both real-time and historical data. Moreover, this Bluetooth data logger can be connected to the gateway device as needed, to adapt to more application environments.

This Bluetooth temperature and humidity sensor can be applied in fields like smart houses, food, archives management, drug storage, greenhouses, and animal farming.

For example, in archives management, paper articles are extremely sensitive to temperature and humidity fluctuation. Improper environmental conditions may seriously shorten the retention period of such articles. This logger can help the user to keep stable temperature and humidity and avoid insect attacks, etc.

In drug management, some drugs have strict requirements for temperature and humidity. Any fluctuations may cause loss of efficacy or spoilage. This Bluetooth temperature recorder will be an ideal instrument to keep the drugs within the proper temperature and humidity range, without opening the package or the storage cabinet, etc.
