Atlas Log-30 Multi-use Temperature Data Logger

Atlas Log-30 Multi-use Temperature Data Logger

Temperature range: -30℃~+70℃ (external probe with 2 meters cable)

Temperature Accuracy: ±0.5℃ at full range (-30℃ to +70℃)

Run Days: Max. 180 days per battery

The Atlas Log-30 Multi-use Temperature Data Logger is a multi-use temperature data logger with LCD screen. The USB thermal camera has a high resolution temperature range of -30 to 70°C. It has a large capacity, can store up to 35,000 readings and display real-time temperature.

Introduction

Atlas Log-30 Multi-use Temperature Data Logger users can freely configure parameters on the configuration software provided by our company according to their needs. The built-in PDF/CSV file generation function allows this temperature data logger with probe to directly generate irreversible data reports in PDF/CSV format without any software.

Features

1. Online software configuration, parameters can be freely configured on the configuration software.

2. Replaceable battery, up to 180 working days. Batteries are replaceable for repeated use.

3. Set freely according to needs, up to 6 alarm points can be set. You can get up to 9 tokens.

4. Password protection, you can set a password to prevent unauthorized operations on the device.

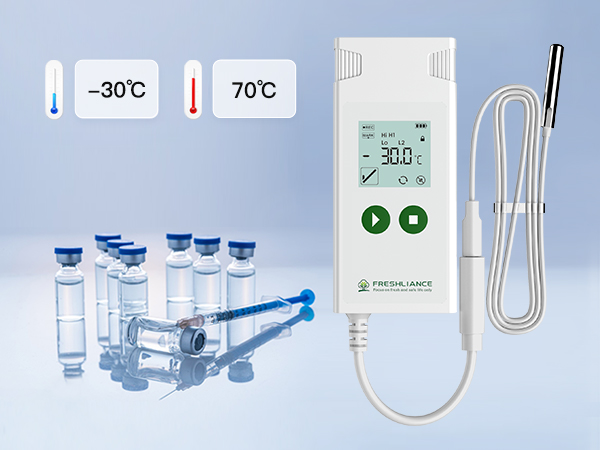

5. With high accuracy, the external probe can measure the temperature from -30 to 70°C, and the accuracy can reach ±0.5℃ at full range (-30℃ to +70℃).

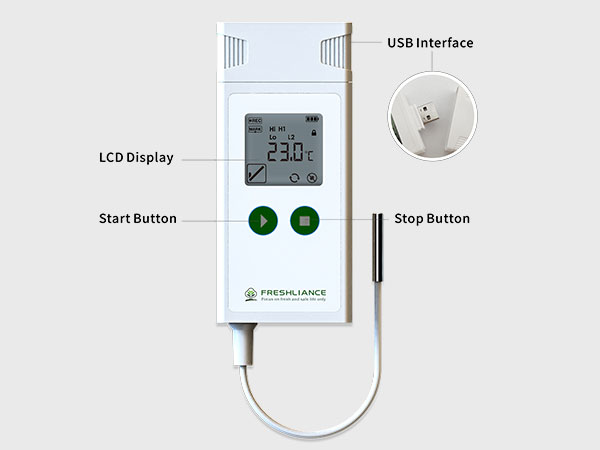

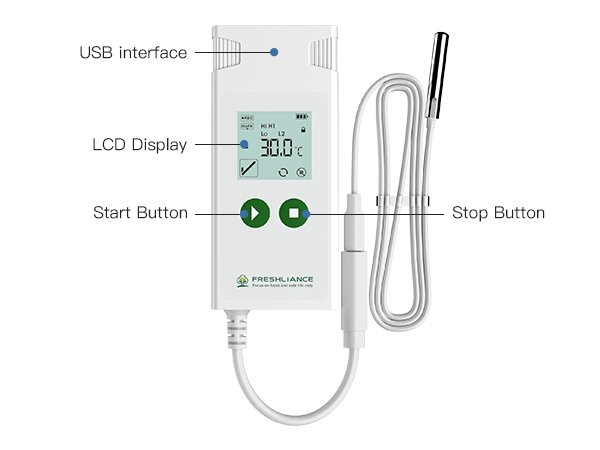

6. The LCD screen displays all parameters, operating status, current temperature, alarm status, battery power, alarm point, maximum, minimum and average temperature values.

7. Ad hoc reports are provided, and the ad hoc mode allows this temperature data logger to continue working after the user generates and reads an ad hoc report. Use the configuration software to check the current data information.

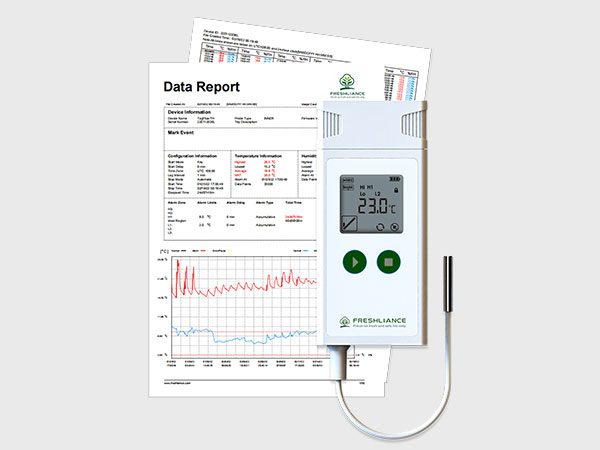

8. Automatically generate reports in PDF/CSV/PDF+CSV format with graphs and tables, no cables or readers required.

9. LCD alarm indication and buzzer alarm, once the temperature exceeds the preset alarm range, the alarm symbol (x) will be displayed on the LCD screen, and the buzzer will emit a 60-decibel alarm sound at a distance of 3m.

10. The temperature unit can be switched, Celsius (°C) and Fahrenheit (°F) can be switched freely.

11. Large memory capacity, to the maximum. 35000 readings for PDF report only; maximum. 20,000 readings in PDF and CSV reports.

Specification

Model	Atlas Log-30	Type	Reusable
Run Days	Max. 180 days per battery	Memory Capacity	PDF: Max. 35000 readings; PDF&CSV: Max. 20000 readings
Temperature Range	-30℃~+70℃ (external probe with 2 meters cable)	Temperature Accuracy	±0.5℃ at full range (-30℃ to +70℃)
Alarm Type	LCD screen display, buzzer (about 60dB at 3m)	LCD Screen Display	Normal, Alarm, Max/Min/Average Temperature Value, Running Status
Resolution	0.1℃	Logging Interval	1 minute-24 hours
Start Delay	0 minute-24 hours	Report Format	Automatic PDF/CSV report
Connection	USB, NFC (optional)	Compatible OS	Windows, Mac
Battery	CR2450	Dimension	96mm44mm15mm
Protection Grade	IP65	Certification	CE, ROSH, EN12830

Applications

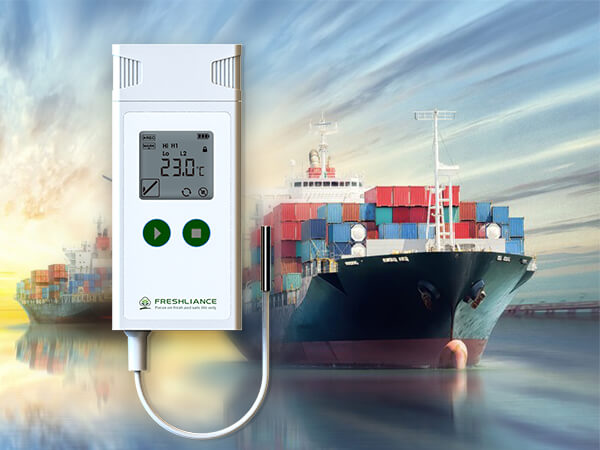

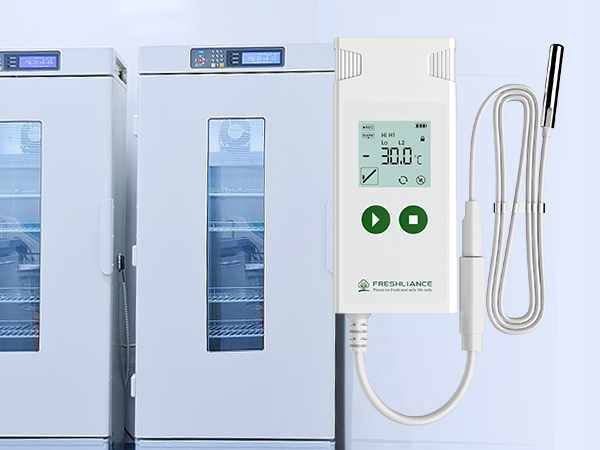

The Atlas Log-30 Multi-use Temperature Data Logger can be used in a wide range of applications such as ocean or air freight, distribution, storage and freezing, pharmaceutical, frozen food, sea containers, etc. Atlas Log multifunctional external probe temperature data logger can be used in biopharmaceuticals, life sciences, biological samples, blood cold chain, diagnostic reagents, including biological reagents, molecular reagents, COVID-19 reagents, and cell biological agents in low temperature environments.
